Capsule Elevators

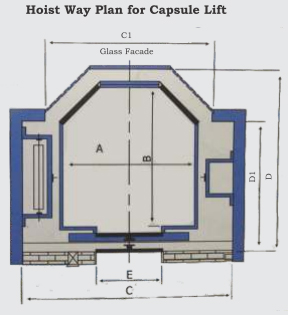

Capsule elevator is that the most exclusive design in elevator manufacturing today. Capsule elevators use most advanced technology in elevator creation. Technically capsule elevators use the same concept as commercial elevator and residential elevators. But as per different looks these elevator require most efficient and accurate designing and crection methodology, in these installations the lift or elevators shaft is not only single side open totally different sides opens as per your requirements for the cabin designs. Cabin for the capsule elevator can be of capsule shape or square or may will be any from as per shaft design.

We are proud to be India's No. 1 company for Capsule elevators or Lifts in Delhi NCR. We offer complete range of vertical movement solutions with Lifts, elevators, Escalators and all types of parking products. We provide customized lifts from low cost lifts for builders flats to high value high reliability lifts for hotels, restaurants, hospital, nursing home, embassies, etc. We are highly experience and professional back-up allow us to develop highly reliable and attractive range design of capsule elevators. We also handle the installation of lifts with utmost care.

We provide all types of capsule lifts having ultramodern design to provide a cosmic zone experience to the passengers. The design provides extremely silent operation. It is also reliable and economical with minimum maintenance.

The VVVF close loop microprocessor controller incorporated with the system makes the whole operation very sophisticated.

V3F with ARD Controller

Contains Just 4 Wires Which Render It Easy For Installation And Servicing.

The Operating Wires Control The Following:

A) Call Latching -- Communicates Floor Signals To The Panels

B) Displaying - Shows Current Lift Level, Directional Arrows, Over Load. Servicing, All In Words.

C) Animation - For Door Open And Close

Panel Has An Alpha-Numeric Double-Digit Display, Floor-Wise

A Separate Programmable Font Selection Facility Is Available.

User Friendly - Easy To Select Desired Floor, Terrace, Basement And So On.

Door Open Options Available - Double-Door, Multi Open/Close Option And So On.

Supports Duplex, Triplex And Quadraplex Upto 32 Floors

Attached With Panel Guard To Protect The System From Phase Loop And Voltage Fluctuations With Complete 3 Phase Voltage Display

Intelligent Algorithm To Attend Any Call Within 10 Seconds For Standard Configuration.

Voltage Detection - If There Is High Or Low Voltage Fluctuation, The Panel Will Not Get Switched On At All.

Available For Lifts Of All Kw Ratings.

Ard History Display Option

Integrated With Ard For All Types Of Geared And Pm Motors.

Supports Ard For Single Phase Home Lift.

Supports All Operations Including Auto Door, Manual Door, Group Collective Etc.

Output Terminals Automatically Short-Circuited When Motor Is Switched Off According To Safety Norms.

Vip Option, Owner Lock, Fire Man Switch, Overload Detection & Protection And All Other Standard Interface, Integrated Gong Well Integrated With Annunciator.

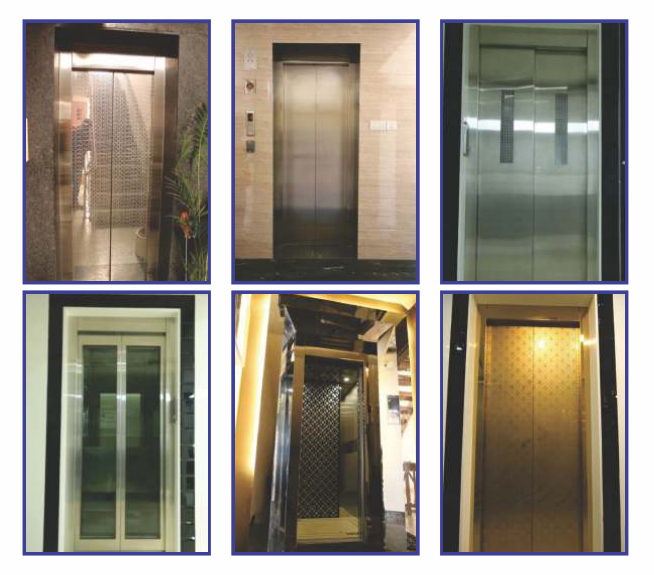

Door Image
Door Image

V3F Controller

Power protective device that improves V3F life

Anti-jerk function that ensures gentle landing.

In-built voice annunciator as well as DOB facility.

Comes with In-built stabilizer option.

Automatic Floor memory recall option.

Single magnet and door zone per floor for any number of floors.

Possible to configure multi car speed based on number of floors to be travelled.

All input and outputs are well protected from over load and short circuit.

User selectable floors, software functional options, delay times and important configurations.

Maintenance work is very efficient in short time.

Dedicated power supply board enhances the reliability of product.

Regulated 24 volt 4 channel DC output for field and internal wiring.
